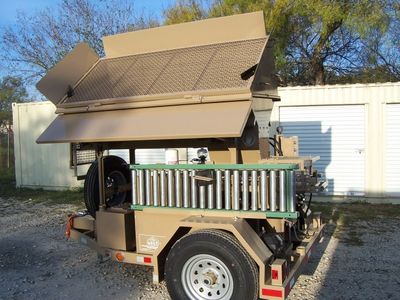

2500HD Series


Compressed Earth Block Machine with Hopper

 Weight:  4000 pounds  (2500 Heavy Duty)

Dimensions: 133 in. long (with ball hitch) or 131 in. long (with a Pental hitch) x 81 in. wide x 109 in. high when Hopper  is open, and 85 in. high when hopper  is closed. (332.74 cm. long (Pental)  x 205.74 cm. wide x 276.86 cm. high w/ hopper open 215.9 cm. closed.) Road clearance approximately 12 inches (30.5 cm)

Power Source: 22  HP - 3 Cylinder Yanmar Water Cooled Diesel  Engine

Hydraulic System Volume: Worldwide hydraulics, 50-gallon tank  capacity, Beta rated filtration system with oil cooler.

Hopper Capacity: 85 - 105 Blocks (depending on block thickness),  one yard of soil

Block  Production Rate: Approximately 480 blocks per hour. Soil only blocks  ejected by  the machine are immediately ready to place in the wall or to stack  on  pallets for temporary storage. Cement or Lime stabilized blocks must be   cured as per normal curing method.

Block  Sizes: Typical block size is 6” (15 cm) X 12” (30.5 cm)  X 2.0 to 4.5”  (5.0 cm to 11.5 cm) thick and weigh between 9-18 pounds (4.1 Kg  t0 8.1  Kg) depending on the soil and block thickness.  Soil only blocks are  bonded together using the  wet thin soil slurry or other conventional  methods.  The soil slurry is made with only water and  screened soil.   Blocks can also be placed  in the wall using the traditional thick mud  mortar method.

Features: CE and EC compliant. Replaceable Tray contact  wear plates,  Replaceable Breech liners, 5 foot removable gravity roller  conveyor and  stand are standard.

Warranty Requirements: We require 2 days for training 1- 4 people. On the Machine,  Soil  Selection, Site Management and Product Safety to validate the  Warranty.

Trailer Characteristics: Can be towed at legal highway speeds by interchangeable  2” ball
   hitch or by Pental hitch by a ½ ton truck. This includes electric  brake
   and USA lighting package.


ALL PRICES ARE FOB SAN ANTONIO, TX. USD Shipping and loading are not included in these prices. Due to volatile steel, oil and transportation prices, these prices subject to change with 30 days’ notice.
